KLIME-EZEE

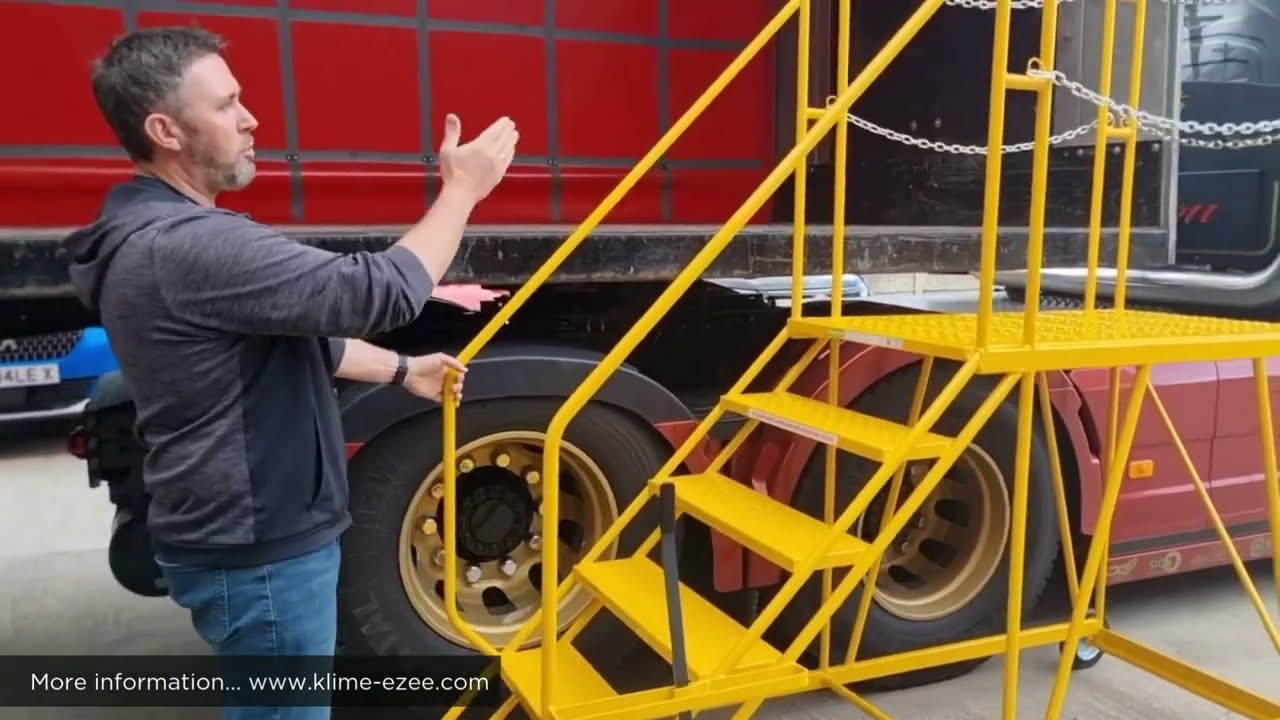

TRUCK DOCK RANGE | KTD
SWL 500 Kg
This range is manufactured with a 45 degree angle of accent, this means that the user is able to descend the steps facing forwards safely.
It comes with an extra large platform and three side exit chains as standard. If you would prefer the range to come with any fixed sides, please see our options and extras page for details.
Very popular with customers loading / unloading vehicles. It comes with many exit, tread and colour options to choose from.
It comes fully welded and ready to use right away.
-
Platform height between 1000 - 1800 mm
-
Tread size 700 (w) x 200 (d) mm
-
Platform size 700 (w) x 1200 (d) mm
Keep your product safe by completing a maintenance inspection every six months.
Standard Colour Options :
Tread Options :
Product | Product Code | Working Height | Overall Height | Platform Height | Overall Width | Overall Length | Weight | Brake Type |
|---|---|---|---|---|---|---|---|---|
Truck dock 5 tread mobile step | KTD05 | 2000 - 2750 | 2000 | 1000 | 995 | 2100 | 66 | Side Brake |
Truck dock 6 tread mobile step | KTD06 | 2200 - 2950 | 2200 | 1200 | 995 | 2300 | 97 | Side Brake |
Truck dock 7 tread mobile step | KTD07 | 2400 - 3150 | 2400 | 1400 | 995 | 2500 | 128 | Side Brake |
Truck dock 8 tread mobile step | KTD08 | 2600 - 3350 | 2600 | 1600 | 995 | 2700 | 158 | Side Brake |
Truck dock 9 tread mobile step | KTD09 | 2800 - 3550 | 2800 | 1800 | 995 | 2900 | 189 | Side Brake |
IMPORTANT INFORMATION
Please Note :
All dimensions are approximate and shown in mm, with weights shown in Kg.
The working height is a general 'guide' taken between waist height and just above the shoulders of the average person (approx. 750 mm range).
Due to our ever improving working environment, we may make enhancements to our products which affect its dimensions. Therefore, reserve the right to amend these at any time, to better serve our customer.
Size Matters :
You should NEVER cut corners or try to save money by choosing a lower model than is required! Reaching or straining should not happen when you pick the right step height! Choosing a step can be quite a difficult task, especially if you're not the one who is ultimately going to be using it! Why not read our handy guide to help you choose the right product...
Packing Information :
This product will arrive fully assembled & ready to use. You should however remove the attached paperwork and store it safely, prior to use.
FACTS
Angle of Ascent :
45 degrees.
Overall Width :
The main framework of this range is approx. 750 mm wide, the overall width shown in the table above is taken at the widest point (which is the axle). If you opt to change the brake type from standard, it may change the overall width of the unit. If you are restricted with space, please give us a call and we can review your options.
Working Platform Size :
700 mm (w) x 1200 mm (d).
Brake Type :
Side handle lever operates the front castors.
Chain Information :
The top chain height is at approx. 950 mm, with the lower chain at approx. 560 mm.
Strengthened Treads :
This product has tread strengtheners to the front of every tread (including the platform).
Kick / Toe Plate :
This range comes with NO toe plate to the working platform as standard.
Rear Legs :
These splay out from the unit at an approximate 3 degree angle. If you wish to add a rear gate to exit your platform, then you should also consider adding 'Flush Back Wheels'.
