KLIME-EZEE

ACCESS PLATFORM RANGE | KAP

SWL 500 Kg

The Klime-Ezee Access Platform is a heavy duty product with strengthened treads..

It comes with an extra large platform and a side exit complete with chains as standard (you choose which side you would like the exit on). If you would prefer the range to come with all fixed sides, please see our options and extras page for details.

Very popular with customers loading / unloading vehicles. It comes with many colour, tread types and exit options to choose from.

It comes fully welded and ready to use right away.

Platform height between 500 - 2000 mm
Tread size 700 (w) x 200 (d) mm
Platform size 700 (w) x 1600 (d) mm

Keep your product safe by completing a maintenance inspection every six months.

Standard Colour Options :

Tread Options :

Description	Product Code	Working Platform Height	Working Height	Overall Height	Overall Width	Overall Length	Weight	Brake Type
2 Tread access platform	KAP02	500	1500 - 2250	1500	1000	1805	65	Side brake
3 Tread access platform	KAP03	750	1750 - 2500	1750	1000	1960	76	Side brake
4 Tread access platform	KAP04	1000	2000 - 2750	2000	1000	2110	78	Central brake
5 Tread access platform	KAP05	1250	2250 - 3000	2250	1000	2470	89	Central brake
6 Tread access platform	KAP06	1500	2500 - 3250	2500	1000	2560	95	Central brake
7 Tread access platform	KAP07	1750	2750 - 3500	2750	1000	2650	108	Central brake
8 Tread access platform	KAP08	2000	3000 - 3750	3000	1000	2775	111	Central brake

Description	Fits	SKU	Shop
Refurb Pack B	Access Platforms (KAP) with 2-8 treads	SPRPB	Shop
Heavy Duty Castors	Access Platforms (KAP) with 2-8 treads	SPCLH	Shop
Large Steel Wheels	Access Platforms (KAP) with 2-8 treads	SPWLS	Shop

Looking for labels or accessories? Visit our spares shop here...

Description	Fits	SKU	Standard or Option
Left Side Exit Chain	KAP 02 - 08	EXWLC	Standard
Right Side Exit Chain	KAP 02 - 08	EXWRC	Option
Rear Exit Chain	KAP 02 - 08	EXWBC	Option
Fixed Sides	KAP 02 - 08	EXWSF	Option
Left Side Exit Gate	KAP 02 - 08	EXWLG	Option
Right Side Exit Gate	KAP 02 - 08	EXWRG	Option
Rear Exit Gate	KAP 02 - 08	EXWBG	Option

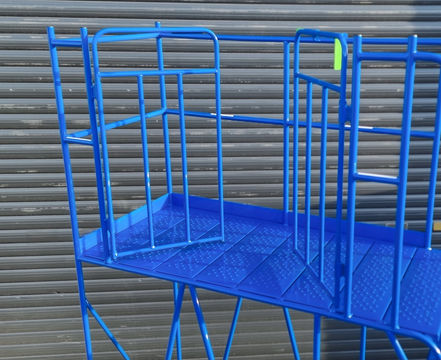

Left Side Double Gates	KAP 02 - 08	EXWDL	Option
Right Side Double Gates	KAP 02 - 08	EXWDR	Option
Left Side Removable	KAP 02 - 08	EXRSL	Option
Right Side Removable	KAP 02 - 08	EXRSR	Option

STANDARD PLATFORM CONFIGURATION

Gate Information :

Double gates - If you choose to have double exit gates on your access platform unit then please note that they will open outward (away from the platform). The right hand gate (looking out from the platform) will open first, followed by the left hand gate.
Single gate - If you choose to have a side gate on your access platform or truck dock unit then please note the size of the gate is 500mm wide and will open outward (away from the working platform) and positioned in the centre. The single gate positioning can also be placed biased to the front or back of the working platform (which will need specifying) and will be hinged at the left hand side as standard.

IMPORTANT INFORMATION

Please Note :

All dimensions are approximate and shown in mm, with weights shown in Kg.

The working height is a general 'guide' taken between waist height and just above the shoulders of the average person (approx. 750 mm range).

Due to our ever improving working environment, we may make enhancements to our products which affect its dimensions. Therefore, reserve the right to amend these at any time, to better serve our customer.

Size Matters :

You should NEVER cut corners or try to save money by choosing a lower model than is required! Reaching or straining should not happen when you pick the right step height! Choosing a step can be quite a difficult task, especially if you're not the one who is ultimately going to be using it! Why not read our handy guide to help you choose the right product...

Packing Information :

This product will arrive fully assembled & ready to use. You should however remove the attached paperwork and store it safely, prior to use.

FACTS

Angle of Ascent :

60 degree.

Overall Width :

The main framework of this range is approx. 750 mm wide, the overall width shown in the table above is taken at the widest point (which is the axle). If you opt to change the brake type from standard, it may change the overall width of the unit. If you are restricted with space, please give us a call and we can review your options.

Working Platform Size :

700 mm (w) x 1600 mm (d).

Chain Information :

The top chain height is at approx. 950 mm, with the lower chain at approx. 560 mm.

Strengthened Treads :

This product has tread strengtheners to the front of every tread (including the platform).

Kick / Toe Plate :

All sizes in this range have toe plate, to the rear and closed side of the working platform.

Rear Legs :

These are straight and do not splay out from the unit.
